$3,199.00

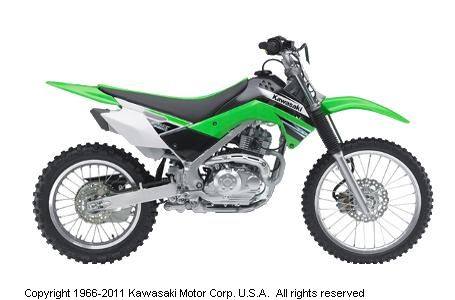

2011 Kawasaki KLX™ 140L


Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.

Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

Print Brochure

Team Green’s stepping stone between mini and full-sized off-road machinery


The gap between minibike and full-sized machine has traditionally been a wide one. And for novices, making that jump can be difficult indeed. But now there’s a motorcycle that bridges the gap nicely – Kawasaki’s KLX™140L. Featuring 19” front and 16” rear wheels fitted to the standard-spec KLX140, the L-model is the ideal machine for more experienced or longer-limbed fans of smaller displacement machines. And with its more performance-oriented, reservoir-equipped rear shock, there’s plenty of performance for everyone. As always, the standard KLX – with 17” front / 14” rear wheels – is a first-rate option for novices and smaller riders.


Start-ups are simple: just press the power switch and thumb the KLX’s start button and you’re off and running. Because dead batteries are a drag, the power switch contains an internal LED that illuminates, alerting riders whenever the ignition is on. Power from the KLX’s air-cooled SOHC 144cc engine is plentiful yet easy to manage via the manual clutch and five-speed close-ratio transmission. The clutch design promotes an easy learning curve via its spring damper system; the design provides progressive, two-stage engagement and easy half-clutch use during slower speed riding, just the thing for those learning the machinations of manual shifting. Additional benefits of this system are a more direct lever feel and increased clutch durability.


The KLX’s high-revving, smooth and surprisingly quiet engine is wrapped in a high-tensile steel perimeter frame covered by KX™-like shrouds, a two-tone seat cover and sharp, aggressive body work. The 140’s roomy cockpit, overall control layout and narrow footpeg/frame relationship – including wide, comfortable footpegs – make it easy for riders to move around with minimal effort.


A 33mm telescopic fork featuring custom-tuned spring rate and damping settings handles suspension duty up front. In back, a UNI-TRAK® linkage equipped rear shock featuring 5-way preload adjustability and a remote reservoir provides a high degree of wheel control, and is adaptable to the smaller-wheeled, standard-spec KLX140 for added performance.


RK EXCEL aluminum rims and advanced braking components are another sign this is a serious off-road motorcycle. A large 220mm front disc and 27mm twin-piston caliper at the front and 186mm rear disc provide serious stopping power. Both utilize petal shaped rotors, which help clean the brakes and reduce unsprung weight for better wheel control.


Bottom line? The KLX140L delivers an ideal blend of size and performance, all of which equals Big Fun for kids and adults alike.


Authentic Kawasaki Accessories are available through Kawasaki dealers.

    Specifications
    • Engine: Four-stroke, SOHC, two-valve single
    • Displacement: 144cc
    • Bore x Stroke: 58.0 x 54.4mm
    • Compression ratio: 9.5:1
    • Cooling System: Air
    • Carburetion: Keihin PB20
    • Ignition: CDI
    • Transmission: Five-speed with wet multi-disc manual clutch
    • Final drive: Chain
    • Frame Type: High-Tensile steel, box-section perimeter
    • Rake/Trail: 27 deg. / 3.8 in.
    • Front suspension: 33mm telescopic fork
    • Front wheel travel: 7.1 in.
    • Rear suspension: UNI-TRAK® linkage system and single shock with piggyback reservoir, fully adjustable preload and 22-way rebound damping
    • Rear wheel travel: 7.1 in.
    • Front Tire Size: 70/100-19
    • Rear Tire Size: 90/100-16
    • Front brakes: Single 220mm petal disc with a dual-piston caliper
    • Rear brakes: Single 186mm petal disc with single-piston caliper
    • Overall length: 74.6 in.
    • Overall width: 31.1 in.
    • Overall height: 42.3 in.
    • Ground clearance: 10.0 in.
    • Seat height: 31.5 in.
    • Curb weight: 209.4 lbs.
    • Wheelbase: 50.6 in.
    • Fuel capacity: 1.5 gal.
    • Color Choices: Lime Green
    • Warranty: 6 months base warranty
    144 CC Air Cooled, Single-Cylinder Engine
    • Reliable and easy to use lightweight engine is both simple to operate and to maintain
    • Bore and stroke of 58.0 x 54.4mm
    • Engine revs easily and allows riders to use the full rpm range of the engine up to the rev limiter at 10,500 rpm
    • Exhaust pipe is curved to achieve optimum length for good power character yet remain unobtrusive
    • Quiet muffler is equipped with a U.S. Forest Service-approved spark arrester, meaning the KLX140L can access designated public off-road riding areas
    • Oil-moistened air-filter is washable, reusable, easily accessed and highly effective in dusty situations
    Electric Start
    • Starting is via a (keyless) electric starter button on the handlebar
    • Orange LED light activates when the power button is depressed, indicating that power is “ON”
    • Digital CDI ignition helps ensure quick, reliable starting
    Carburetor
    • Oval piston-valve Keihin PB20 carburetor features several Kawasaki-original modifications to provide stable fuel delivery under rough off-road conditions
    • Partitions in the float chamber keep the fuel from sloshing excessively and an umbrella around the main jet traps fuel when jumping
    • Dual air vents help provide a stable fuel supply and eliminate hesitation, even when the bike is at extreme lean angles
    • Needle valve is suspended on a spring which acts like a shock absorber
    • Float is rubber instead of plastic
    Cose-ratio Transmission
    • Close gear ratios help the acceleration performance of the KLX
    • Like the KX trade; models, the shift lever features a ball bearing to ease shifting and has a folding tip for less damage in a crash
    Progressive Manual Clutch
    • Manual clutch offers young riders the chance to master clutch engagement and gear shifting
    • A spring damper in the clutch gives it a two-stage engagement that permits half-clutch use when riding at extremely low rpm or idling speeds and helps provide direct clutch feel and better durability
    Box-section Perimeter Frame
    • Ready for the off-road abuse, the highly rigid, KX-inspired high-tensile steel perimeter frame also uses the same upper tubes as the KLX250S
    • Aluminum swingarm offers light weight, strength and a hairline finish like on the KX machines
    • KX-style chain adjusters allow precise adjustment of the chain
    Superior Suspension
    • 33mm telescopic front fork has spring rates and damping settings specific to each model
    • Intended for a higher average speed, the KLX140L features a rear shock with piggyback reservoir with fully adjustable preload, 4-way compression damping and 22-way rebound damping
    KX-style Wheels
    • Strong, high-grade die-cast hubs that offer the same durability as those found on the KX
    • Durable, lightweight RK EXCEL aluminum rims on the 19/16-inch front/rear wheels
    Petal Disc Brakes Front and Rear
    • Front 220mm petal disc and large-bore 27mm twin-piston caliper (same size as those on the KX450F/250F) for strong and easy-to-control braking
    • Rear brake uses a 186mm petal disc gripped by a 27mm single-piston caliper
    • Rear brake master cylinder features a large-volume, unitized reservoir that contributes to stable braking and helps ensure sufficient fluid pressure is maintained, even when the brake pad wears down
    • In addition to helping reduce unsprung weight, the wave shapes of the petal discs help clean the brake pads for more efficient braking performance
    Ergonomics
    • Combination of the flat surface of the frame’s box-section, long footpegs mounted close to the bikes’ centerline and no kick-start lever add up to good grip and a high level of machine control available to the rider
    • Footpeg/frame relationship is modeled after the KX for maximum leg grip
    • Handlebar is rubber-mounted for reduced vibration transferred to the rider’s hands
    • Two-piece upper triple clamp and handle clamp fosters easy aftermarket handlebar installation
    • Raised pattern on half of the surface of the grips just like the top-class MX racers
    • Two-tone seat cover has a slip-resistant top surface for good grip when seated and smooth sides for excellent rider mobility when standing
    Sharp, Aggressive Bodywork Styling
    • Box-section perimeter frame, with advanced styling similar to that found on the KX racers
    • Two-piece shrouds with ventilation holes inspired by the top-of-the-line KX race machines
    • Fuel tank cover provides a flush transition from tank to shroud, and contributes to the high level fit and finish
    • Eye-catching box muffler design protrudes as little as possible from behind the side cover, and features a plastic muffler end-cap that offers a surface cooler to the touch than steel

    Specifications

    Engine
    Engine Type Four-stroke, SOHC, two-valve single
    Displacement 144cc
    Bore and Stroke 58.0 x 54.4mm
    Cooling Air
    Compression Ratio 9.5:1
    Ignition CDI
    Chassis
    Front Suspension 33mm telescopic fork
    Front Brakes Single 220mm petal disc with a dual-piston caliper
    Front Tire 70/100-19
    Rear Suspension UNI-TRAK® linkage system and single shock with piggyback reservoir, fully adjustable preload and 22-way rebound damping
    Rear Brakes Single 186mm petal disc with single-piston caliper
    Rear Tire 90/100-16
    Dimensions
    Dry Weight 209.4 lbs.
    Fuel Capacity 1.5 gal.
    Wheelbase 50.6 in.
    Ground Clearance 10.0 in.
    Seat Height 31.5 in.
    Trail 3.8 in.
    Rake 27 deg.
    Transmission
    Transmission Five-speed with wet multi-disc manual clutch
    Final Drive Chain
    General
    Colors Lime Green
    Warranty 6 months base warranty

    Compare Models

    Print








    Year 2011
    Manufacturer Kawasaki
    Model KLX™ 140L
    Style Off-Road
    MSRP* $3,199.00
    Chassis
    Front Suspension 33mm telescopic fork
    Front Brakes Single 220mm petal disc with a dual-piston caliper
    Front Tire 70/100-19
    Rear Suspension UNI-TRAK® linkage system and single shock with piggyback reservoir, fully adjustable preload and 22-way rebound damping
    Rear Brakes Single 186mm petal disc with single-piston caliper
    Rear Tire 90/100-16
    Dimensions
    Dry Weight 209.4 lbs.
    Fuel Capacity 1.5 gal.
    Wheelbase 50.6 in.
    Ground Clearance 10.0 in.
    Seat Height 31.5 in.
    Trail 3.8 in.
    Rake 27 deg.
    Engine
    Engine Type Four-stroke, SOHC, two-valve single
    Displacement 144cc
    Bore and Stroke 58.0 x 54.4mm
    Cooling Air
    Compression Ratio 9.5:1
    Fuel System
    Ignition CDI
    General
    Colors Lime Green
    Warranty 6 months base warranty
    Transmission
    Transmission Five-speed with wet multi-disc manual clutch
    Final Drive Chain
