Showcase Home » Kawasaki » KLX™ 140
Model Quick Search

$2,899.00

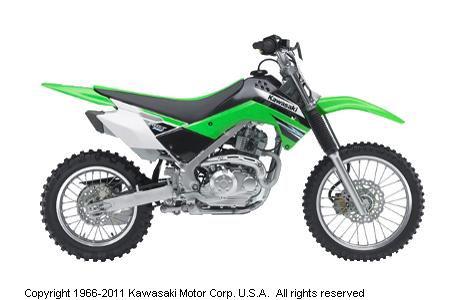

2011 Kawasaki KLX™ 140


Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.

Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

Print Brochure

Small-bike friendliness, big-bike capability


There’s nothing like an off road motorcycle that does many things well, especially one that fits a wide variety of riders and skill-sets. And with its mid-sized stature, flexible engine and easy-to-ride nature, Kawasaki’s 2011 KLX™140 is one such multi-talented machine. Smaller riders will love the KLX’s physical size – a touch larger than a typical minibike – and push-button starting, while those a bit taller will appreciate the larger-wheeled KLX140L, which features a 19” front and 16” rear wheel in place of the standard KLX’s 17” front and 14” rear wheels. Both 140s are friendly to beginners and novices, yet both offer a roomy cockpit and enough performance and handling prowess to keep more advanced riders smiling.


Start-ups are simple: just press the power switch and thumb the KLX’s start button and you’re off and running. Because dead batteries are a drag, the power switch contains an internal LED that illuminates, alerting riders whenever the ignition is on. Power from the KLX’s air-cooled SOHC 144cc engine is plentiful yet easy to manage via the manual clutch and five-speed, close-ratio transmission. The clutch design promotes an easy learning curve via its spring damper system; the design provides progressive, two-stage engagement and easy half-clutch use during slower speed riding, the perfect thing for those just leaning the machinations of manual shifting. Additional benefits of this system are a more direct lever feel and increased clutch durability.


The KLX’s high-revving, smooth and surprisingly quiet engine is wrapped in a high-tensile steel perimeter frame covered by KX™-like shrouds, a two-tone seat cover and sharp, aggressive body work. The 140’s roomy cockpit, overall control layout and narrow footpeg/frame relationship – including wide and comfortable footpegs – make it easy for riders to move around while aboard with a minimum of effort.


A 33mm telescopic fork featuring custom-tuned spring rate and damping settings handles suspension duties up front. In back, a UNI-TRAK® linkage equipped rear shock featuring 5-way preload adjustability provides a smooth and controlled ride. To provide even greater options for growing riders, the KLX140L’s more advanced, reservoir-equipped shock easily fits the standard KLX140.


RK EXCEL aluminum rims and advanced braking components are another sign this is a serious off-road motorcycle. A large 220mm front disc and 27mm twin-piston caliper at the front and 186mm rear disc provide serious stopping power. Both utilize petal shaped rotors, which help clean the brakes and reduce unsprung weight for better wheel control.


Bottom line? The KLX140 delivers an ideal blend of size and performance, all of which equals Big Fun for kids and adults alike.


Authentic Kawasaki Accessories are available through Kawasaki dealers.

    Specifications
    • Engine: Four-stroke, SOHC, two-valve single
    • Displacement: 144cc
    • Bore x Stroke: 58.0 x 54.4mm
    • Cooling System: Air
    • Carburetion: Keihin PB20
    • Compression ratio: 9.5:1
    • Ignition: CDI
    • Transmission: Five-speed with wet multi-disc manual clutch
    • Final drive: Chain
    • Frame Type: High-Tensile steel, box-section perimeter
    • Rake: 27 deg.
    • Trail: 3.3 in.
    • Front suspension: 33mm telescopic fork
    • Wheel travel: 7.1 in.
    • Rear suspension: UNI-TRAK® linkage system and single shock with 5-way preload adjustability
    • Wheel travel: 7.1 in.
    • Front Tire Size: 70/100-17
    • Rear Tire Size: 90/100-14
    • Front brakes: Single 220mm petal disc with a dual-piston caliper
    • Rear brakes: Single 186mm petal disc with single-piston caliper
    • Overall length: 71.7 in.
    • Overall width: 31.1 in.
    • Overall height: 41.3 in.
    • Wheelbase: 49.6 in.
    • Ground clearance: 9.3 in.
    • Seat height: 30.7 in.
    • Curb weight: 205.0 lbs.
    • Fuel capacity: 1.5 gal.
    • Color Choices: Lime Green
    • Warranty: 6 months base warranty
    144 CC Air-cooled, Single-Cylinder Engine
    • Reliable and easy to use lightweight engine is simple to operate and maintain
    • Engine revs easily and allows riders to use the engine’s full rpm range up to the rev limiter at 10,500 rpm
    • Exhaust pipe is curved to achieve optimum length for good power characteristics
    • Quiet muffler is equipped with a USFS-approved spark arrester, meaning the KLX140 can access designated public off-road riding areas
    • Oil-moistened air filter is washable, reusable, easily accessed and highly effective in dusty situations
    Electric Start
    • Keyless electric starting via handlebar-mounted button
    • Orange LED light activates when the power button is depressed, indicating that power is “ON” to help prevent accidental battery drain
    • Digital CDI ignition helps ensure quick, reliable starts
    Carburetor
    • Oval piston-valve Keihin PB20 carburetor features several Kawasaki-original modifications to provide stable fuel delivery under rough off-road conditions
    • Partitions in the float chamber keep the fuel from sloshing excessively, while an umbrella around the main jet traps fuel when jumping
    • Dual air vents help provide a stable fuel supply and eliminate hesitation even when the bike is at extreme lean angles
    • Needle valve is suspended on a spring, which acts like a shock absorber
    • Float material is rubber instead of plastic
    Close-Ratio Transmission
    • Close gear ratios help the acceleration performance of the KLX
    • Shift lever features a ball bearing design for easy shifting like KX™ models, and has a folding tip for reduced crash damage
    Progressive Manual Clutch
    • Manual clutch offers young riders the chance to master clutch engagement and gear shifting
    • Spring damper in the clutch provides a two-stage engagement that permits half-clutch use when riding at extremely low rpm or idling speeds, and helps provide better clutch feel and durability
    Box-Section Perimeter Frame
    • Ready for the off-road abuse, the highly rigid, KX-inspired high-tensile steel perimeter frame uses the same upper tubes as the high-performance KLX250S
    • Aluminum swingarm is lightweight, strong and features a hairline finish just like the KX machines
    • KX-style chain adjusters allow precise chain adjustment
    Superior Suspension
    • 33mm telescopic fork has spring rates and damping settings specific to each model
    • KLX140 rear shock features 5-way preload adjustability
    • More advanced KLX140L rear shock and reservoir can be mounted on the KLX140 for faster riders
    Petal Disc Brakes Front & Rear
    • Front 220mm petal disc and large-bore 27mm twin-piston caliper (same size as those on the KX450F/250F) offer strong and easy-to-control braking
    • Rear brake uses a 186mm petal disc gripped by a 27mm single-piston caliper
    • Rear brake master cylinder features a large-volume, unitized reservoir that contributes to stable braking and helps ensure sufficient fluid pressure, even when the brake pad wears down
    • The wave shape of the petal discs help clean the brake pads for more efficient braking performance and reduce unsprung weight
    KX-Style Wheels
    • Strong, high-grade die-cast hubs offer the same durability as those on the KX models
    • Durable, lightweight RK EXCEL aluminum rims are featured on the KLX’s 17/14-inch front/rear wheels
    Ergonomics
    • Flat-shaped box-section of frame, long footpegs mounted close to the bikes’ centerline and no kick-start lever combine to offer riders a good grip on the bike and thusly a higher level of machine control
    • Footpeg/frame relationship is modeled after the KX models for maximum leg grip
    • Handlebar is rubber-mounted to reduce vibration transferred to the rider’s hands
    • Two-piece upper triple clamp and handle clamp allow easy aftermarket handlebar installation
    • Raised pattern on half of the handgrip surface improves rider grip and comfort
    • Two-tone seat cover has a slip-resistant top surface for improved grip and smooth sides for excellent rider mobility when standing
    Sharp, Aggressive Bodywork
    • Box-section perimeter frame features advanced styling similar to that of the KX racers
    • Two-piece shrouds with ventilation holes inspired by the top-of-the-line KX race machines
    • Fuel tank cover provides a smooth transition from tank to shroud, and contributes to the high level fit and finish
    • Eye-catching box muffler design protrudes as little as possible from behind the side cover and features a plastic muffler end-cap that offers a surface that’s cooler to the touch than steel

    Specifications

    Engine
    Engine Type Four-stroke, SOHC, two-valve single
    Displacement 144cc
    Bore and Stroke 58.0 x 54.4mm
    Cooling Air
    Compression Ratio 9.5:1
    Fuel System Keihin PB20
    Ignition CDI
    Chassis
    Front Suspension 33mm telescopic fork
    Front Brakes Single 220mm petal disc with a dual-piston caliper
    Front Tire 70/100-17
    Rear Suspension UNI-TRAK® linkage system and single shock with 5-way preload adjustability
    Rear Brakes Single 186mm petal disc with single-piston caliper
    Rear Tire 90/100-14
    Dimensions
    Dry Weight 205.0 lbs.
    Fuel Capacity 1.5 gal.
    Wheelbase 49.6 in.
    Ground Clearance 9.3 in.
    Seat Height 30.7 in.
    Trail 3.3 in.
    Rake 27 deg.
    Transmission
    Transmission Five-speed with wet multi-disc manual clutch
    Final Drive Chain
    General
    Colors Lime Green
    Warranty 6 months base warranty

    Compare Models

    Print








    Year 2011
    Manufacturer Kawasaki
    Model KLX™ 140
    Style Off-Road
    MSRP* $2,899.00
    Chassis
    Front Suspension 33mm telescopic fork
    Front Brakes Single 220mm petal disc with a dual-piston caliper
    Front Tire 70/100-17
    Rear Suspension UNI-TRAK® linkage system and single shock with 5-way preload adjustability
    Rear Brakes Single 186mm petal disc with single-piston caliper
    Rear Tire 90/100-14
    Dimensions
    Dry Weight 205.0 lbs.
    Fuel Capacity 1.5 gal.
    Wheelbase 49.6 in.
    Ground Clearance 9.3 in.
    Seat Height 30.7 in.
    Trail 3.3 in.
    Rake 27 deg.
    Engine
    Engine Type Four-stroke, SOHC, two-valve single
    Displacement 144cc
    Bore and Stroke 58.0 x 54.4mm
    Cooling Air
    Compression Ratio 9.5:1
    Fuel System Keihin PB20
    Ignition CDI
    General
    Colors Lime Green
    Warranty 6 months base warranty
    Transmission
    Transmission Five-speed with wet multi-disc manual clutch
    Final Drive Chain
